Copper Wire Mesh


Item
Red copper wire mesh

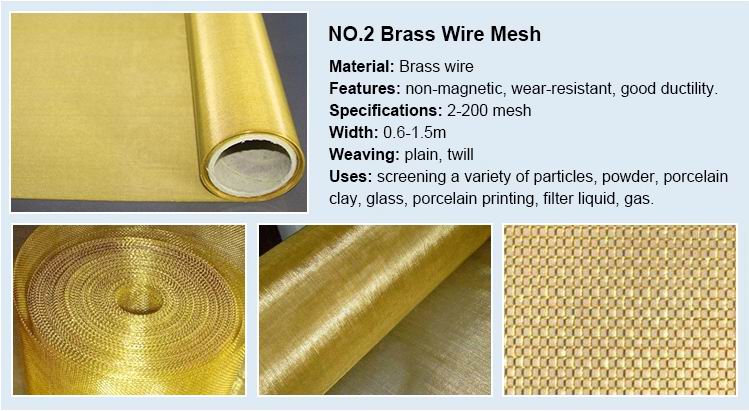

Brass wire mesh
Phosphor bronze wire mesh
Tinned copper wire mesh
Material
99% pure copper wire
H65 wire (65%Cu-35%Zn )
Tin bronze wire
Tinned copper wire
Mesh count
2-200 mesh
2-200 mesh
2-500 mesh
2-100 mesh
Weave type
Plain/ Twill
Common size
width 0.6-2.9m; length 30m/roll, Also can be as per your demand
Common feature
Nonmagnetic, good ductility, Wear resistance, Fast heat transfer, Good electrical conductivity
Special features
Sound insulation;
Electron filtration
Apply to Newspaper/typing/chinaware printing usual;
Smoking screen
Apply to Chinaware printing, screening all kinds of particles, powders, and porcelain clay
High-temperature resistance, anti-aging, and long service life
Common Applications
EMI/RFI shielding;
Faraday cage

Mesh Count/Linear Inch
Wire Diameter(mm)
Aperture (mm)
Open Area %
4
1.2
5.15
65.8
5
1
4.08
64.5
6
0.71
3.52
69.2
8
0.5
2.67
70.7
10
0.5
2.04
64.5
12
0.45
1.66
61.5
14
0.4
1.41
60.4
16
0.3
1.28
65
18
0.25
1.16
67.6
20
0.25
1.02
64.5
30
0.21
0.64
57.1
40
0.19
0.45
50.2
50
0.15
0.36
50.1
60
0.15
0.27
40.7
70
0.13
0.232
40.8
80
0.12
0.197
39
90
0.11
0.172
37.2
100
0.1
0.154
37
110
0.09
0.141
37.2
120
0.09
0.122
33.2
130
0.07
0.125
41
140
0.07
0.111
37.6
150
0.06
0.109
41.5
160
0.06
0.098
38.1
180
0.053
0.088
41.6
200
0.05
0.077
36.7
(width of roll): 0.60m-2.9m

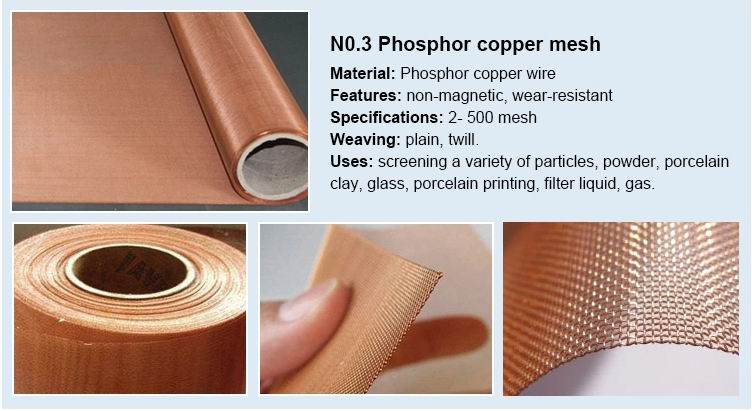

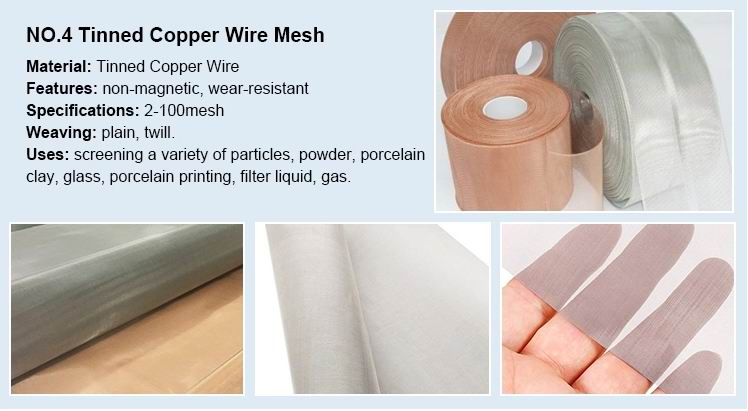

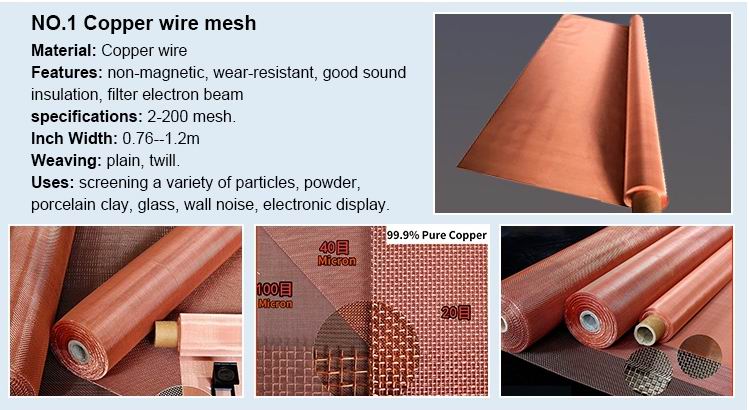

Detailed Photos

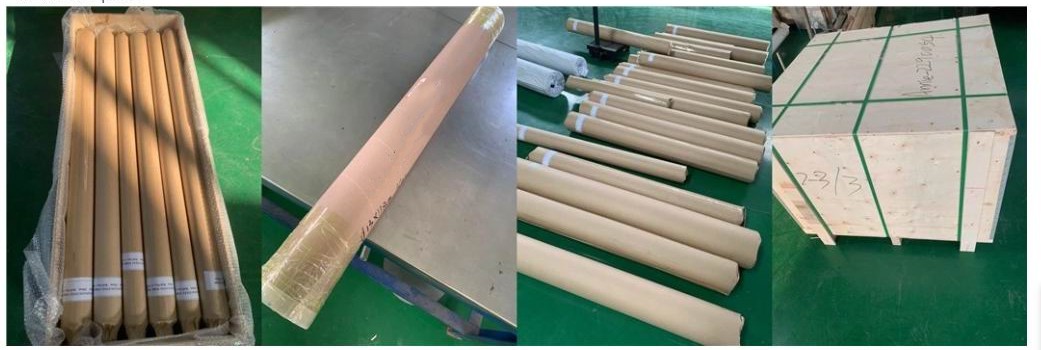

Packaging and Shipping

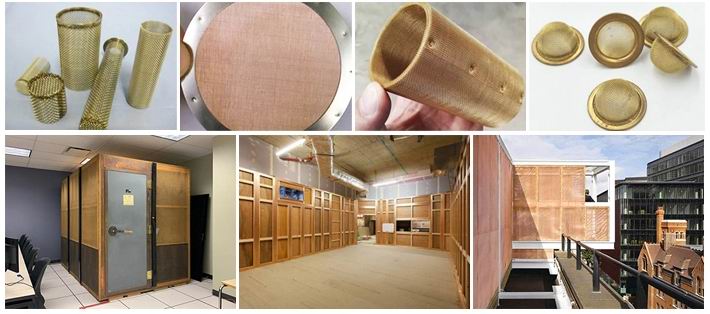

Product Application
