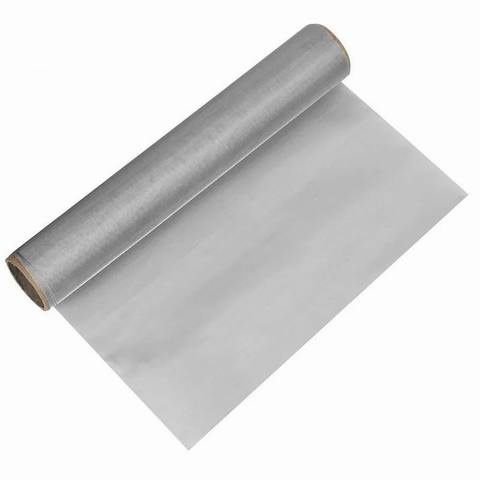

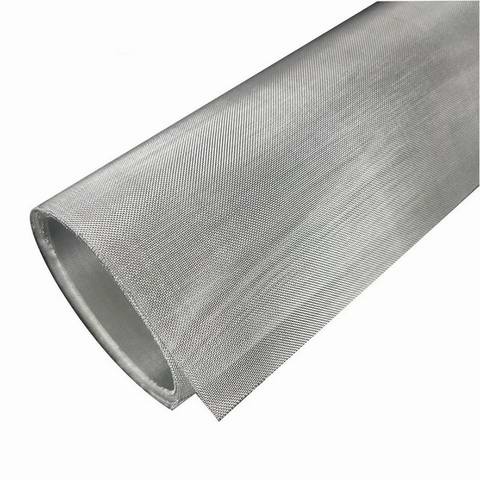

Inconel Wire Mesh

Product No.：202332016617
Online Inquiry

Material：Inconel 600, Inconel 601, Inconel 617, Inconel 625, Inconel 718, Inconel X750

Woven Type：Plain weave and Twill weave

Mesh：2-200 mesh

Wire Diameter：0.053mm-1.8mm

Width：0.1-1.5m

Length：Customized

Package：Rolls in Kraft paper and plastic cloth, then in wooden case or pallet

Application：Furnace components, Sparking electrodes, Pressure vessels, Gas turbines, Nuclear reactors, Heat treating muffles and retorts,Rocket motors.

Mesh	Wire Dia. (mm)	Aperture (mm)
2	1.80	10.90
3	1.60	6.866
4	1.20	5.15
5	0.91	4.17
6	0.80	3.433
8	0.60	2.575
10	0.55	1.990
12	0.50	1.616
14	0.45	1.362
16	0.40	1.188
18	0.35	1.060
20	0.30	0.970
26	0.28	0.696
30	0.25	0.596
40	0.21	0.425
50	0.19	0.318
60	0.15	0.273
70	0.14	0.223
80	0.12	0.198
90	0.11	0.172
100	0.10	0.154
120	0.08	0.132
140	0.07	0.111
150	0.065	0.104
160	0.065	0.094
180	0.053	0.088
200	0.053	0.074
