Products >> Special Material Wire Mesh >>

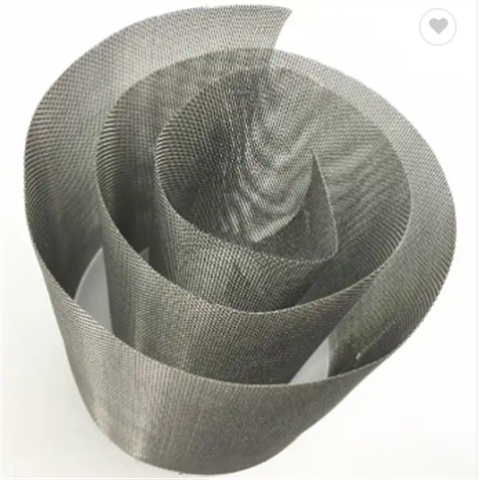

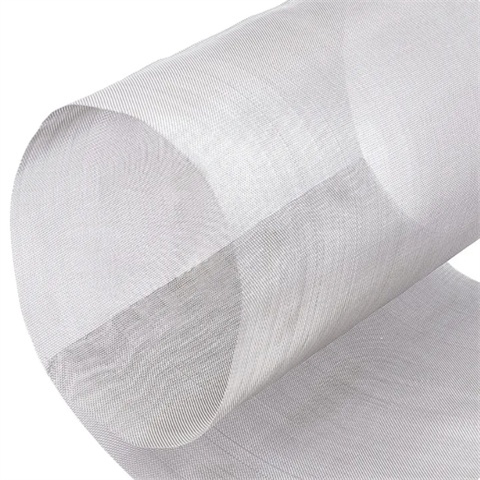

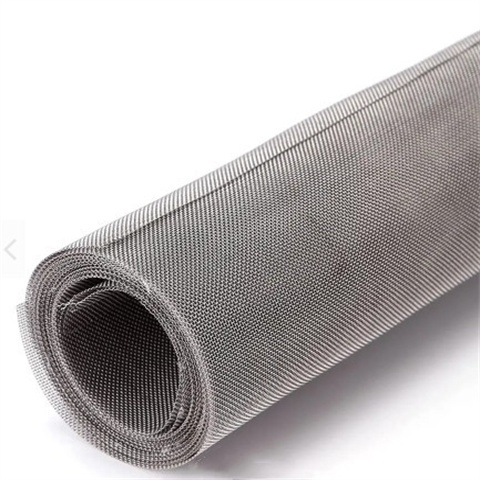

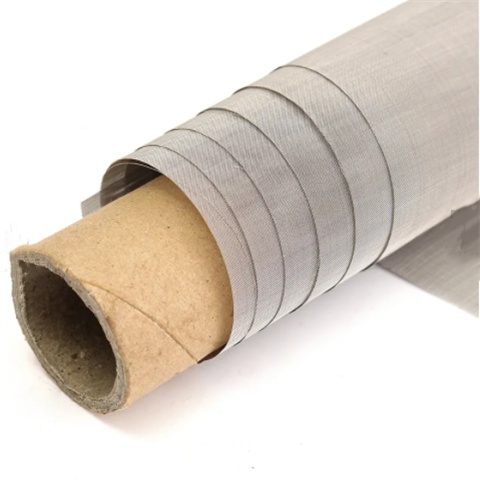

Monel Alloy Woven Mesh

Product No.：202331514471
Online Inquiry

Materials：MONEL 400;MONEL 401;MONEL 404;MONEL R-405;MONEL K-500

Weave:Plain weave, twill weave, dutch weave

Mesh：1-400mesh

Melting Point：1300 degree - 1350 degree

Features:
Superior corrosion resistance and acid-alkali resistance,high temperature resistance,
resistance to stress corrosion,high tensile strength,excellent hardness.
Application:
Monel wire mesh can be widely used in chemical and petrochemical industry and marine
development etc.

Mesh	Wire Dia. (mm)	Aperture (mm)
2	1.80	10.90
3	1.60	6.866
4	1.20	5.15
5	0.91	4.17
6	0.80	3.433
8	0.60	2.575
10	0.55	1.990
12	0.50	1.616
14	0.45	1.362
16	0.40	1.188
18	0.35	1.060
20	0.30	0.970
26	0.28	0.696
30	0.25	0.596
40	0.21	0.425
50	0.19	0.318
60	0.15	0.273
70	0.14	0.223
80	0.12	0.198
90	0.11	0.172
100	0.10	0.154
120	0.08	0.132
140	0.07	0.111
150	0.065	0.104
160	0.065	0.094
180	0.053	0.088
200	0.053	0.074
