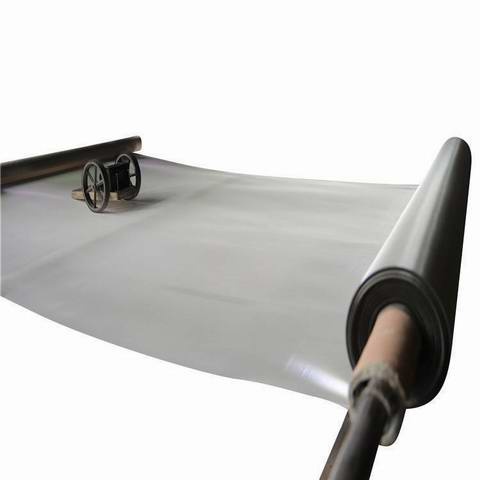

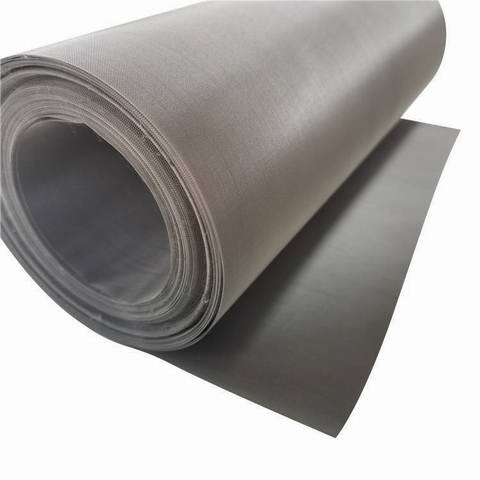

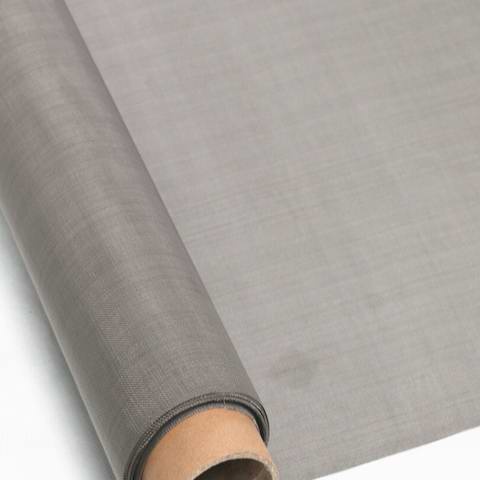

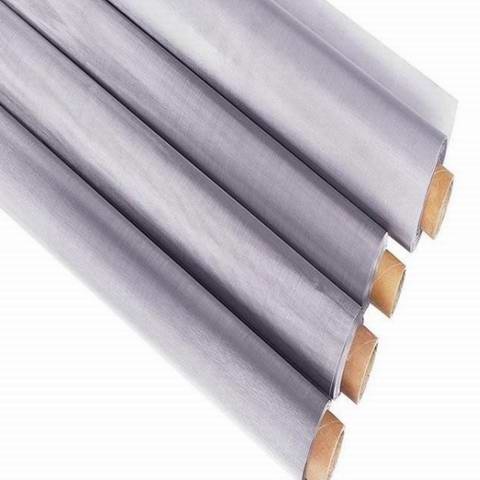

Hastelloy Wire Mesh

Product No.：2023320151037
Online Inquiry

Material：Hastelloy C-276, Hastelloy C-22, Hastelloy B-2, Hastelloy B-3

Woven Type：Plain weave and Twill weave

Mesh：2-200 mesh

Wire Diameter：0.053mm-1.8mm

Width：0.1-1.5m

Length：Customized

Package：Rolls in Kraft paper and plastic cloth, then in wooden case or pallet

Application:Flue gas desulfurization systems, Heat exchangers, Reaction vessels, Evaporators, Sour gas wells, Vacuum furnaces, Chlorination systems.

Mesh	Wire Diameter(mm)	Aperture(mm)
2	1.80	10.90
3	1.60	6.866
4	1.20	5.15
5	0.91	4.17
6	0.80	3.433
8	0.60	2.575
10	0.55	1.990
12	0.50	1.616
14	0.45	1.362
16	0.40	1.188
18	0.35	1.060
20	0.30	0.970
26	0.28	0.696
30	0.25	0.596
40	0.21	0.425
50	0.19	0.318
60	0.15	0.273
70	0.14	0.223
80	0.12	0.198
90	0.11	0.172
100	0.10	0.154
120	0.08	0.132
140	0.07	0.111
150	0.065	0.104
160	0.065	0.094
180	0.053	0.088
200	0.053	0.074
