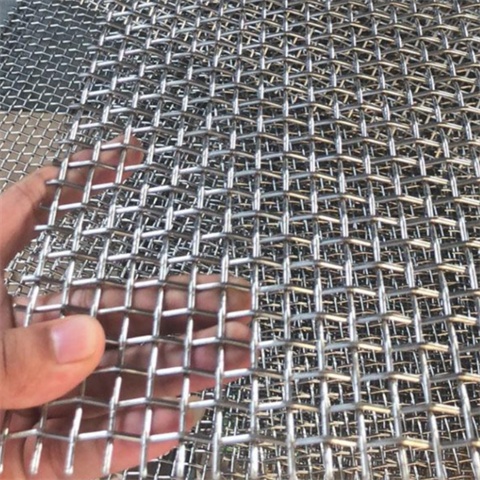

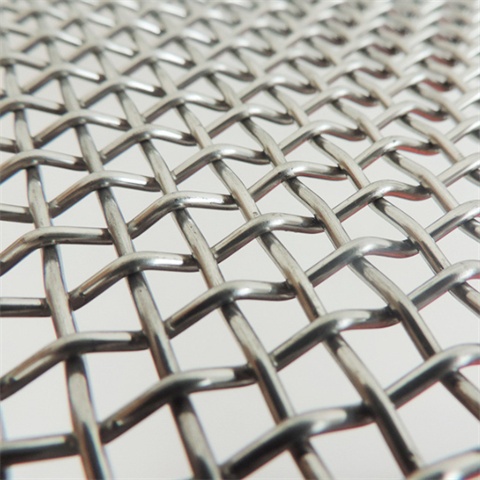

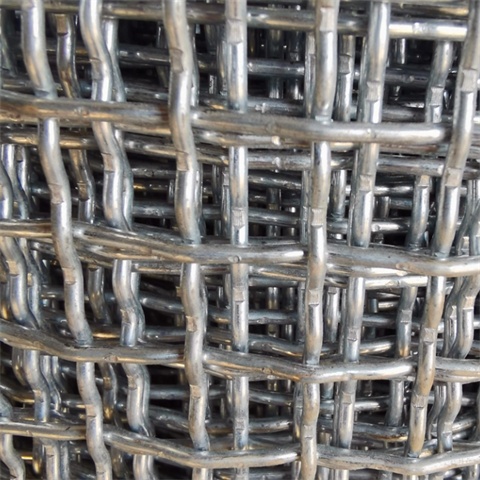

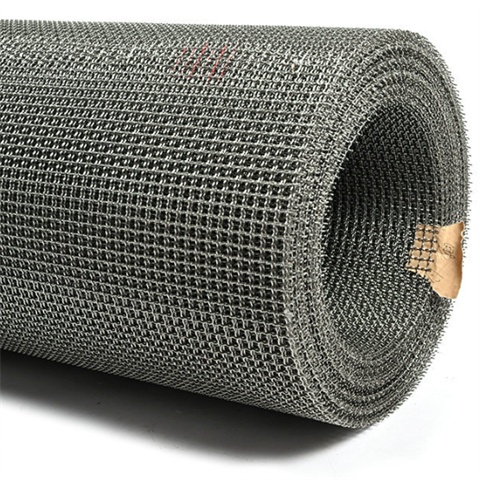

Stainless Steel Crimped Wire Mesh

Product No.：20233516277
Online Inquiry

Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot.
Feature: Longer life, High adhesion, excellent efficiency of mechanical splice.

S/No	Hole size	Thickness	Panel size
1	0.5mm	0.3mm	1200mmx1500mm 1500mmx2000mm 1500mmX2470mm 1600mmX3100mm 1600mmx2550mm 1630mmX2550mm 1750mmx4500mm 1850mmx2070mm 2000mmx3000mm 2030mmX2050mm 2070mmx2470mm ... Customized size is available.
2	1.0mm	0.75mm
3	1.5mm	1mm
4	2.0mm	1.5mm
5	3.0mm	2mm
6	4.0mm	2.5mm
7	5.0mm	3mm
8	6.0mm	3mm
9	7.00mm	3mm
10	8.0mm	3mm
11	9.0mm	3.5mm
12	9.5mm	3.5mm
13	10.mm	4mm
14	11.0mm	4mm
15	12.0mm	4mm
16	12.5mm	4mm
17	13.0mm	4mm
18	14.0mm	4mm
19	15.0mm	4mm
20	16.mm	4mm
21	17.mm	4.5mm
22	18.mm	5mm
23	19.mm	5mm
24	20.0mm	6mm
25	21.0mm	6mm
26	22.0mm	6mm
27	23.0mm	6mm
28	24.0mm	6mm
29	25.0mm	6mm
30	26.0mm	6mm
31	30.0mm	6.5mm
32	32.0mm	7mm
33	35.0mm	7mm
34	38.0mm	8mm
35	40.0mm	8mm
36	45.0mm	8mm
37	50.0mm	8mm
38	55.0mm	8mm
39	60.0mm	8.5mm
40	65.0mm	8.5mm
41	75.0mm	9 mm
42	80.0mm	9 mm
43	90.0mm	9mm
44	100.0mm	10MM
