Products >> Stainless Steel Wire Mesh >>

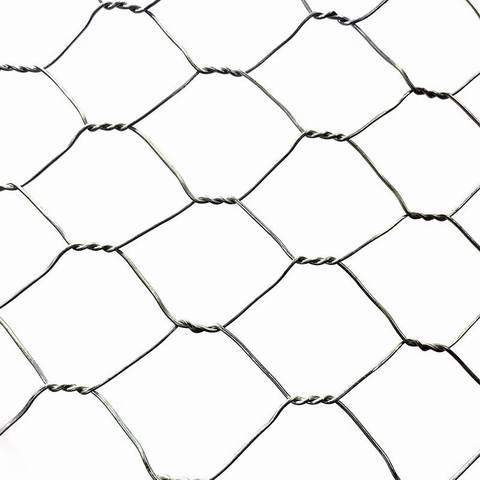

Stainless Steel Hexagonal Mesh

Product No.：202332115741
Online Inquiry

Material : Stainless Steel Wire201,304,316,304L，316L, PVC Coated Wire.

Characteristics : With strong structure and flat surface, hexagonal wire netting enjoys the corrosion

resisting, oxidation resisting, etc.

Usage : hexagonal wire mesh can be used as fence for poultry mesh, farms, bird cages, tennis court, also used as light reinforcement in splinter proof glass and cement

Wire Gauge.(Diameter)BWG	Mesh
Wire Gauge.(Diameter)BWG	In inch	mm	（mm) Tolerance	Min.Galv. G/SQ.M
23,24,25,26,27	3/8"	10mm	±1.0	0.7mm-145
21,22,23,24,25	1/2"	13mm	±1.5	0.7mm-95
22,23,24,25,26,27	5/8"	16mm	±2.0	0.7mm-70
19,20,21,22,23,24,25	3/4"	20mm	±3.0	0.7mm-55
18,19,20,21,22,23,24,25	1"	25mm	±3.0	0.9mm-55
18,19,20,21,22,23	1-1/4"	31mm	±4.0	0.9mm-40
18,19,20,21,22,23	1-1/2"	40mm	±5.0	1.0mm-45
18,19,20,21,22,23	2“	50mm	±6.0	1.2mm-40
18,19,20,21	2-1/2”	65mm	±7.0	1.0mm-30
17,18,19,20	3“	75mm	±8.0	1.4mm-30
16,17,18,19	4”	100mm	±8.0	1.6mm-30
