Stainless Steel Wire Mesh

 1.Material:

Common material: SUS201, 304, 304L, 316, 316L, 431, 321 stainless steel wire

Special material: 410/430, 310S, 904L stainless steel wire

                           UNS S31803(S32205) duplex stainless steel wire

                           UNS S32750 Super duplex stainless steel wire

2.Wire Diameter:  0.015-2.8mm

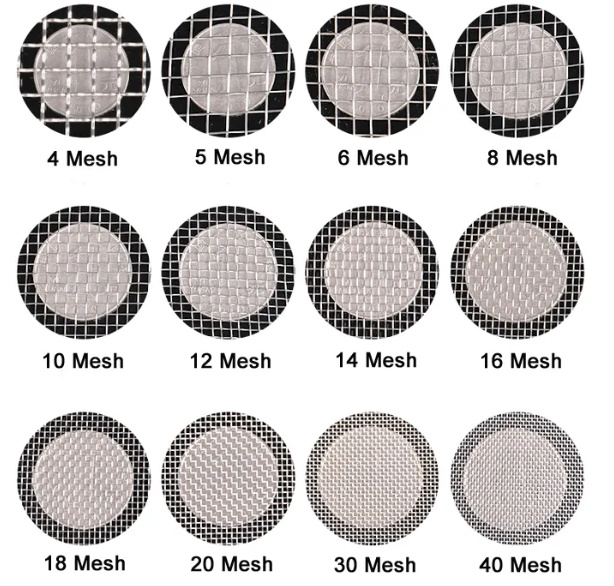

3.Mesh counts: Plain/Twill weave: 2-635mesh Dutch weave:12*64-500*3200 mesh

4. Opening: 1 mesh – 3100 mesh;

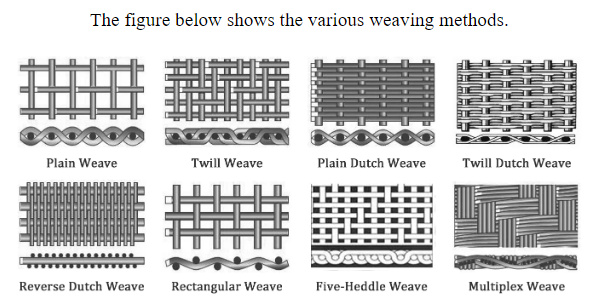

Plain Weave

Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch Wire diameter
(mm)		 Aperture
(mm)		 -- Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 500mesh 0.025 0.0385
Technical Note:
1. Standard roll length: 15.24m, 30m, 30.5m, 61m
2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')
3. Special sizes available at request
4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.

Twill weave

Mesh/inch Diameter(mm) Aperture(mm) - Mesh/inch Diameter(mm) Aperture(mm)
100mesh 0.14 0.114 325mesh 0.035 0.043
120mesh 0.1 0.111 350mesh 0.032 0.0405
150mesh 0.09 0.079 400mesh 0.03 0.0335
180mesh 0.07 0.071 450mesh 0.026 0.0304
200mesh 0.06 0.067 500 mesh 0.025 0.0258
250mesh 0.045 0.0566 600 mesh 0.018 0.0243
300mesh 0.04 0.0446 635mesh 0.018 0.022

Plain Dutch Weave

Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)		 - Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)
8 X 62 0.63mm X 0.45mm 300 45 X 250 0.16mm X 0.112mm 56
10 X 79 0.50mm X 0.355mm 250 50 X 250 0.14mm X 0.11mm 53
12 X 64 0.58mm X 0.40mm 280 55.5 X 280 0.14mm X 0.10mm 50
14 X 88 0.40mm X 0.30mm 180 65 X 330 0.11mm X 0.08mm 36
19 X 140 0.315mm X 0.20mm 140 70 X 350 0.11mm X 0.08mm 35
20 X 300 0.35mm X 0.20mm - 70 X 385 0.11mm X 0.07mm 32
24 X 110 0.355mm X 0.25mm 120 78 X 700 0.11mm X 0.08mm 30
25 X 140 0.28mm X 0.20mm 100 80 X 400 0.10mm X 0.065mm 40
30 X 150 0.25mm X 0.18mm 80 80 X 600 0.10mm X 0.06mm -
35 X 175 0.224mm X 0.16mm 71 80 X 800 0.15mm X 0.04mm -
40 X 200 0.20mm X 0.14mm 60 81 X 780 0.10mm X 0.07mm 30
      90 X 550 0.12mm X 0.05 -

Twill Dutch weave

Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)		 - Mesh/inch
Wrap*weft		 Wire diameter
Wrap*weft(mm)		 Aperture
(um)
91 X 787 0.10mm X 0.07 25 200 X 600 0.071mm X 0.06 -
101 X 900 0.10mm X 0.063 20 200 X 800 0.071mm X 0.06 -
120 X 400 0.10mm X 0.075 - 200 X 1400 0.071mm X 0.04 12
127 X 1100 0.07mm X 0.05 17 202 X 1760 0.05mm X 0.032 10
160 X 1500 0.063mm X 0.04 15 216 X 1860 0.045mm X 0.030 9
165 X 400 0.071mm X 0.06 - 254 X 2000 0.04mm X 0.028 8
165 X 600 0.071mm X 0.05 - 285 X 2235 0.036mm X 0.025 7
165 X 800 0.071mm X 0.05 25 312 X 2100 0.035mm X 0.025 -
165 X 1100 0.071mm X 0.045 - 318 X 2235 0.036mm X 0.025 -
165 X 1400 0.071mm X 0.04 16 325 X 2300 0.035mm X 0.025 5
174 X 1700 0.063mm X 0.032 13 400 X 3100 0.035mm X 0.019 3

5. Length: 50ft (15m) or 100ft (30m), other length could be request;

6.Width: 3ft (0.914m), 4ft (1.22m), 5ft (1.5m), 6ft (1.8m), 6.5ft (2m), other width could be order are request.

Production Process

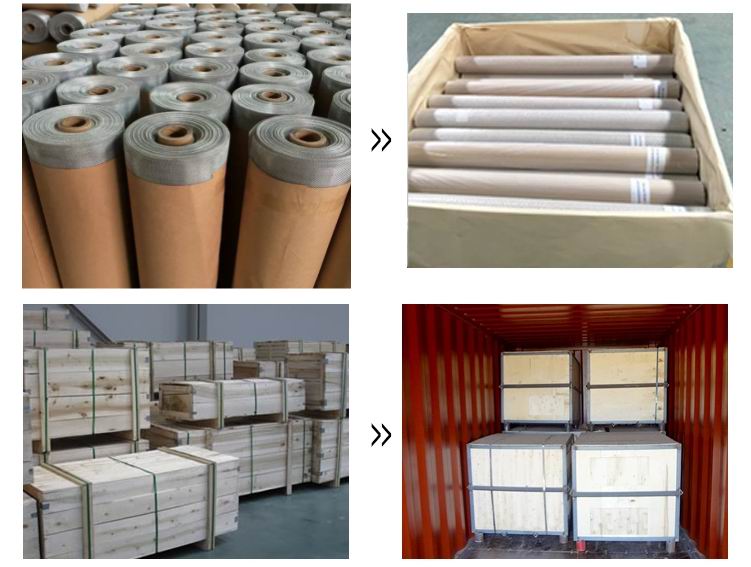

Packing and Shipping
