Barbed Wire Fence

Product No.：2023101714829
Online Inquiry

Material: Low carbon steel wire, Steel Wire
Zinc coated: 40-60g/m2, 8-20g/m
Weight coil: 5-50KG
Roll length: 100m, 200m, 350m, 400m, 500m
Breaking load (Rupture): 250KGF，350KGF

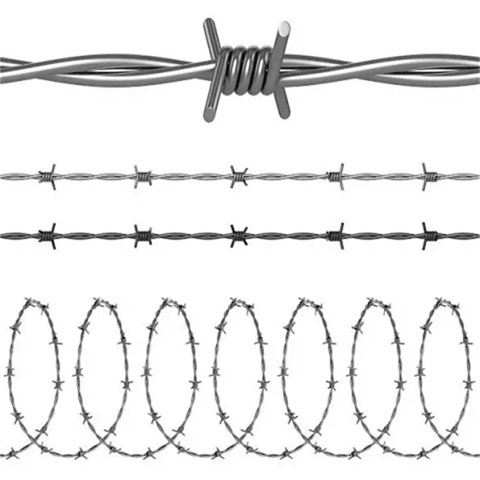

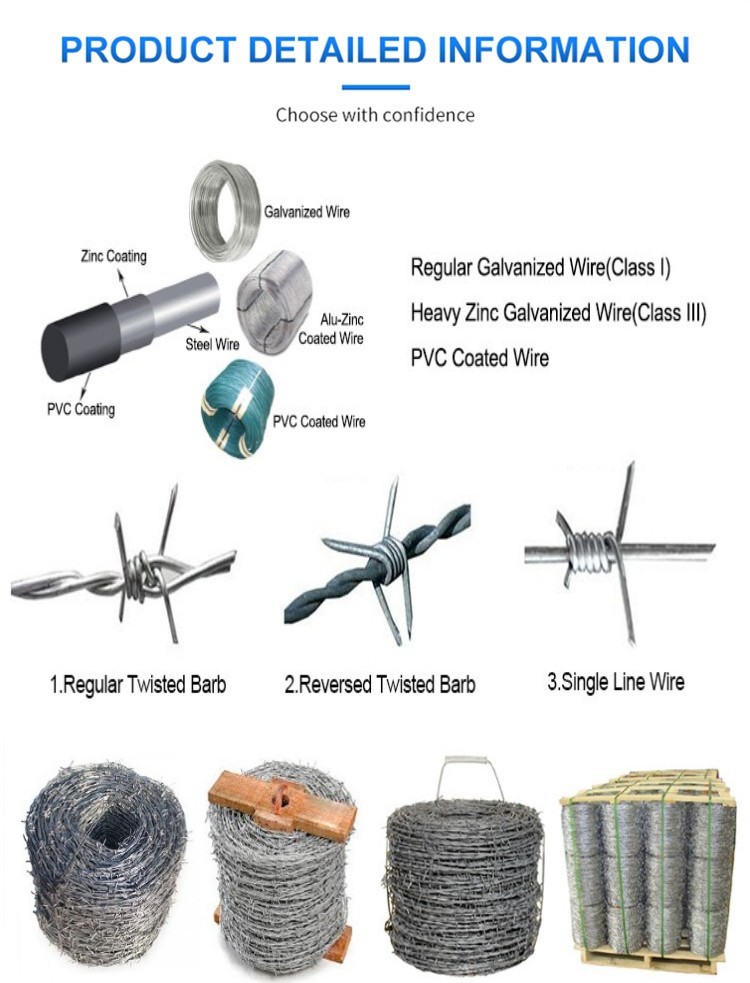

Barbed wire weave types：Double twist barbed wire，Traditional Twist barbed wire，Single strand barbed wire
PVC PE coating thickness: 0.4-0.6mm; different colors or length are available at customers request
Surface treatment: HDG, EG and PVC coated 2.
Tensile of Strength: 1) Soft: 380-550N/mm2 2) High tensile:800-1200N/mm2 IOWA type,2strands, 4 points. Barb distance 3" to 6"(Tolerance +/-1/2")

Galvanized barbed wire
Wire diameter （BWG）	Length per KG
Wire diameter （BWG）	Barb distance 3‘’	barb distance 4‘’	barb distance 5‘’	barb space 6‘’
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12.5x12.5	6.9223	7.7190	8.3022	8.7221
12.5x14	8.1096	8.8140	9.2242	9.5620
13x13	7.9808	8.8990	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13.5x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14.5x14.5	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15.5x15.5	15.3491	17.1144	18.4060	19.3386
PVC BARBED WIRE	Wire diameter		barbs' distance	barb length
	Before coating	After coating	7.5cm-15cm	1.5cm-3cm
	1.0mm-3.5mm	1.4mm-4.0mm
	Bwg11-Bwg20	Bwg8-Bwg17
	Swg11-Swg20	Swg8-Swg17
Other sizes can be made as request
