Farm Fence

Product No.：2023113161755
Online Inquiry

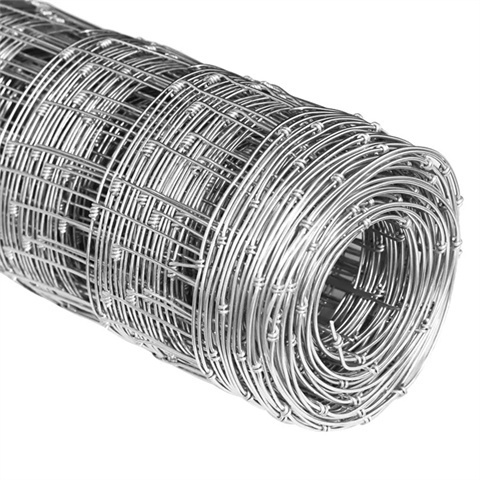

Farm fence is one kind of fence made of galvanized wire, which is widely used in the pasture, grass protection, cattle protection, etc. It also known as field fence, farm fence, grassland fence, livestock fence, horse fence, deer fence, sheep wire knotted wire mesh fence.

Material: Q195, steel wire

Classification:

I. Electric galvanized

II. Hot dipped galvanized

III. High hot dipped galvanized

Edge wire: 2.0mm-3.2mm
Mesh wire dia: 1.8mm-2.5mm
Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m.We can also make as the request of the customer.
Length: 50m-200m (According to the request of the customer)
Application: Fence for feeding deer, sheep and cow, or other fences.

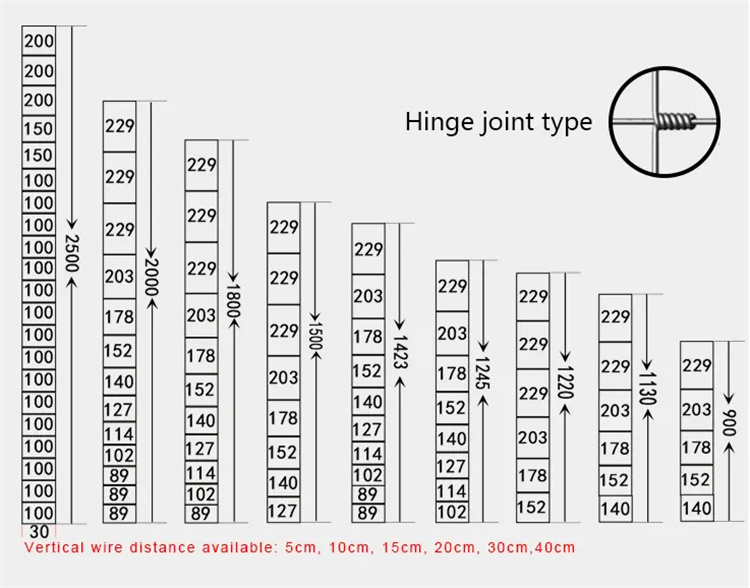

Specification for Field Fence
No.	Specifications and Hole Sizes		Gross Weight (kg)	Top and Bottom Wire Dia.(mm)	Inner Wire Dia.(mm)
No.	Type	Specifications (the incremental vertical hole sizes)	Gross Weight (kg)	Top and Bottom Wire Dia.(mm)	Inner Wire Dia.(mm)
1	7/150/813/50	102+114+127+140+152+178	19.3	2.5	2
2	8/150/813/50	89(75) +89+102+114+127+140+152	20.8	2.5	2
3	8/150/902/50	89+102+114+127+140+152+178	21.6	2.5	2
4	8/150/1016/50	102+114+127+140+152+178+203	22.6	2.5	2
5	8/150/1143/50	114+127+140+152+178+203+229	23.6	2.5	2
6	9/150/991/50	89(75) +89+102+114+127+140+152+178	23.9	2.5	2
7	9/150/1245/50	102+114+127+140+152+178+203+229	26	2.5	2
8	10/150/1194/50	89(75) +89+102+114+127+140+152+178+203	27.3	2.5	2
9	10/150/1334/50	89+102+114+127+140+152+178+203+229	28.4	2.5	2
10	11/150/1422/50	89(75) +89+102+114+127+140+152+178+203+229	30.8	2.5	2
